Quiet EV Cabins Make Window Run Channel Issues Hard to Ignore
Because there is no internal combustion engine hum under the hood, wind buffeting and noise leaking past the framed door glass are among the most persistent complaints raised by drivers on Leaf owner forums. The silent electric drivetrain magnifies every faint whistle around the window seals, particularly along the front door cutline just behind the fixed A-pillar opera vent glass. Squeaking, chattering, and sluggish window travel during wet or cold mornings are nearly always traced back to grit or binding inside the channel run rubber seal (part series 80330 on the driver side and 80331 on the passenger side).

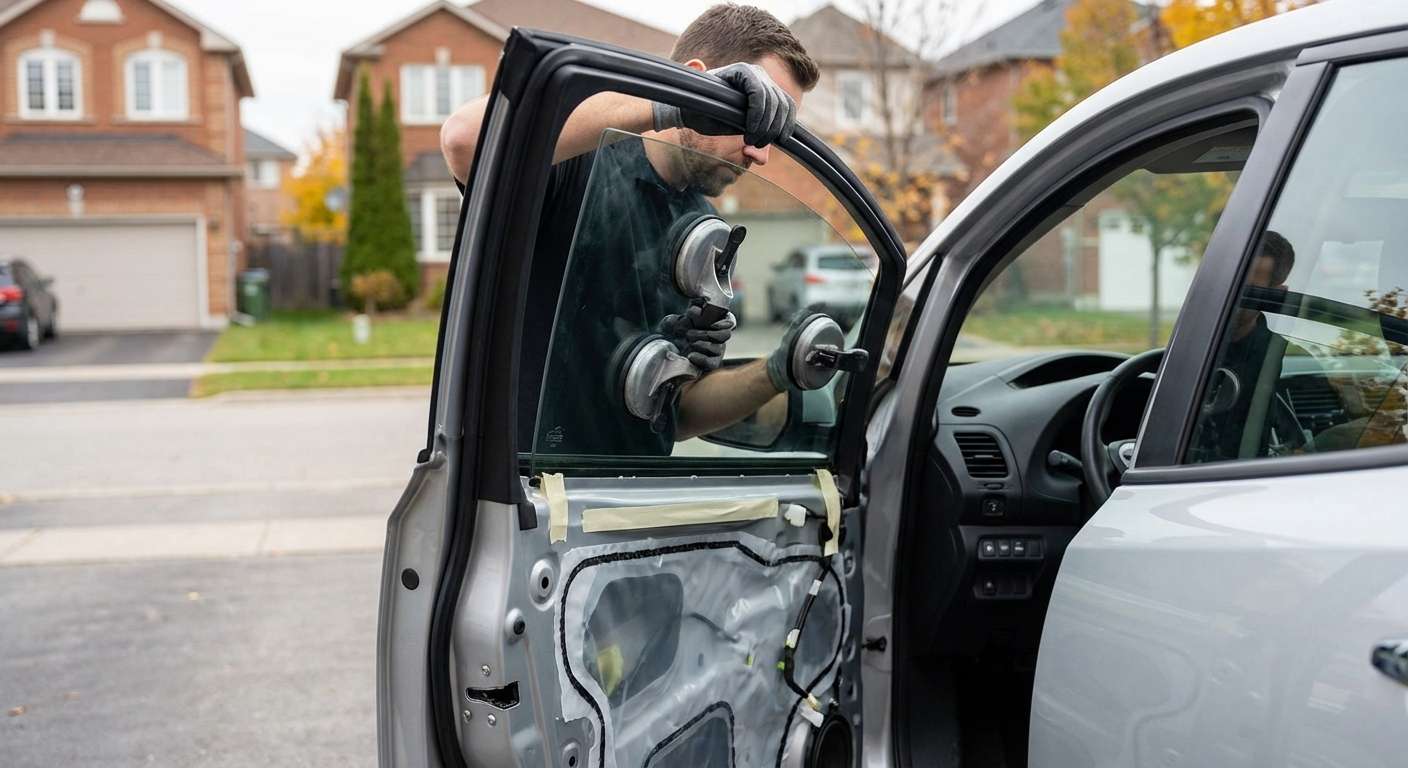

When an unexpected break leaves the cabin exposed, I can generally be on-site roughly an hour after you get in touch, vacuuming out the tempered pellets and getting a new pane slotted into the door frame so the car is sealed again. Inside the door, the roll-up glass mechanically anchors into the lifter assembly with retaining screws through bottom sash clips. If the regulator cable binds or the glass drops suddenly inside the door shell, it is usually because these bottom lifter fixings or the regulator carriage took the brunt of a binding run channel.
ZE0 and AZE0 Year Splits Across Front and Rear Doors
The first-generation Leaf underwent hardware updates mid-cycle, shifting factory configurations between the original 2011–2012 builds (ZE0) and the revised 2013–2017 models (AZE0). The movable glass pieces across all four doors are tempered safety glass, but factory part numbering changed when Nissan reworked interior door architecture and trim configurations.
| Glass Location | 2011–2012 Reference | 2013–2017 Reference |
|---|---|---|
| Front Driver (Left) | 80301-3NA0A / 80301-3NA5A | 80301-3NF0A |
| Front Passenger (Right) | 80300-3NA0A / 80300-3NA5A | 80300-3NF0A |
| Rear Left Roll-Up | 82301-3NA0A | 82301-3NF1A |
| Rear Right Roll-Up | 82300-3NA0A / 82300-3NA5A | 82300-3NF1A |
| Rear Fixed Quarter (Left) | 82221-3NA0A | 82221-3NF1A |
| Rear Fixed Quarter (Right) | 82220-3NA0A | 82220-3NF1A |
Managing the Rear Partition Bar and Tint Differences
The rear door assembly uses a two-piece glass design. The drop window is divided from the smaller, stationary rear quarter glass by a vertical partition sash bar (part series 82222 on the right and 82223 on the left). Replacing either rear pane means working around this center divider channel; if the partition channel is knocked out of plumb during glass replacement, the moving pane will bind against the upright track on its way up.
Trim levels also factor into the replacement glass match. Nissan delivered the entry-level Leaf S with uniform standard tint across every piece of side glass, while SV and SL trims featured dark privacy tint on both the rear movable roll-up glass and the fixed quarter glass. Matching the rear glass requires confirming whether the Leaf has the clear factory glass from the base build or the darker rear privacy shading used on the higher equipment grades.
