Sunroof Glass Inspection Before Fitting the X350 and X358 Panel
When unboxing a replacement sunroof panel for this Jaguar, the first critical detail I examine is the encapsulated perimeter frame and the attached rubber bulb seal (part C2C31834). Because this vehicle uses an all-aluminum monocoque body shell, the glass encapsulation must be completely uniform with no rough casting flash that could scrape against the bare aluminum roof aperture. I also verify the mounting bracket footprint against the vehicle's wheelbase and production split: early short-wheelbase cars up to VIN H15749 take panel C2C31835, whereas all long-wheelbase models and post-split short-wheelbase cars from VIN H15750 onward rely on panel C2C31836. Securing the wrong version will cause binding against the internal roof cassette.
I also inspect the four threaded mounting inserts bonded to the lateral glass brackets. These anchor points accept the four Torx T15 machine screws hidden behind the interior flexible accordion bellows. If these metal inserts have any thread pitch defects or adhesive contamination from production, the screws will bind early, making it impossible to adjust the panel smoothly on its drive shoes. Finally, I verify the depth of the factory dark solar tint across the tempered pane to ensure it matches the interior sunshade fabric, whether the car has an Oatmeal or Flint cabin headliner.
Post-Installation Clearance and Mechanism Verification
Once the replacement glass is seated on the lift arms, the focus shifts to panel height and mechanism travel. Jaguar requires the glass panel to sit flush with the exterior roof skin within a tight tolerance of ±1.0 mm all the way around. If the leading edge sits even slightly proud, highway speeds will produce intense wind whistling; if the trailing edge sits too low, surface water easily overwhelms the internal drip channel. I adjust the Torx T15 fasteners while the panel rests in its fully closed position to lock in this parallel gap.

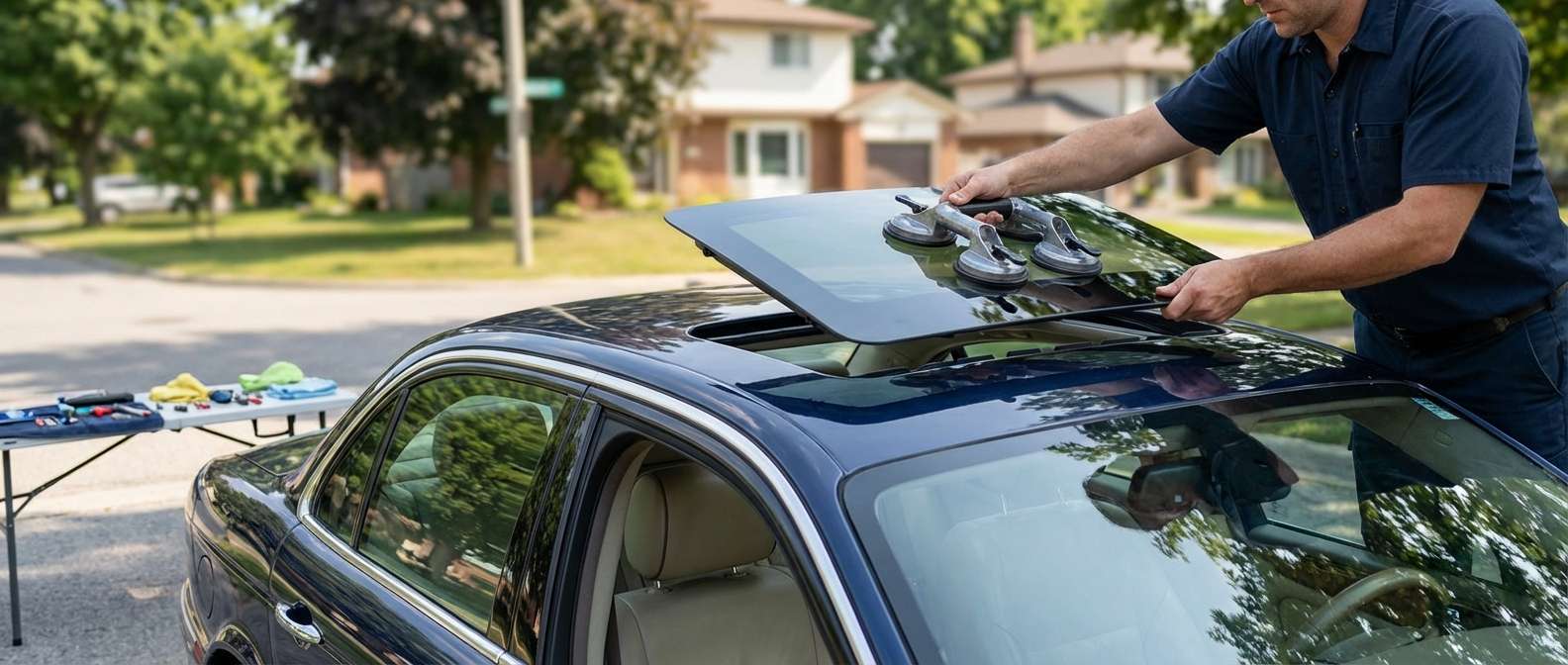

When an emergency call comes in for a shattered sunroof on an XJ, I typically pull up to the client's driveway roughly an hour after booking to inspect the roof cassette and prevent rain damage to the cabin electronics. Before testing the motor, I manually check the mechanical front pop-up wind deflector along the leading cassette edge. If its spring-loaded hinges stick, the glass will jam as it attempts to slide forward between the aluminum roof skin and the headliner. I also confirm that the internal plastic track guides and cam brackets—components that share basic Ford-era DEW98 design lineage with the 2000–2002 Lincoln LS—run smoothly along the extruded guide tracks without chatter or binding from shattered glass fragments.
Jaguar XJ Sunroof Questions
Why did water leak into my footwell after the sunroof glass broke?
The sunroof cassette relies on four drainage outlets connected to flexible rubber hoses routed through the A-pillars and C-pillars. When glass breaks or the perimeter seal degrades, debris immediately washes into these corner troughs. If the front A-pillar tubes plug up, water overflows the cassette rails and spills straight down behind the dashboard into the cabin fuse arrays and lower carpet.
Can the sunroof glass be replaced without lowering the vehicle headliner?
Yes. The glass panel itself detaches entirely from inside the cabin without dropping the entire headliner or removing the main cassette assembly. Gently pulling back the rubber accordion side bellows reveals the four Torx T15 retaining screws that clamp the glass brackets directly to the cable-driven lift mechanism.
