Framed Door Construction and Wheelbase Sizing
Working on the side windows of this saloon requires immediate attention to the car's body length. Unlike modern coupés or subsequent flagship sedans that adopt frameless styling, these doors rely on traditional, fully framed aluminum upper channels. While the front doors share the exact same drop glass across standard and extended sedans, the rear doors do not. The long-wheelbase variants, frequently seen on Vanden Plas and Super V8 editions, stretch the passenger compartment significantly, meaning the rear drop glass is several inches longer than the glass fitted to a standard-wheelbase car. Standard rear glass matches NAGS part number DD10494 GTN for the left side, whereas the extended door calls for DD10630 GTN.
Because the aluminum monocoque door structure is delicate, I routinely pack the exact variant needed and aim to pull up to your location roughly an hour after you get in touch. This ensures broken tempered pieces are removed from the run channels before they bind in the felt wipe seals.
Regulator Cable Bindings and Clamping Hardware

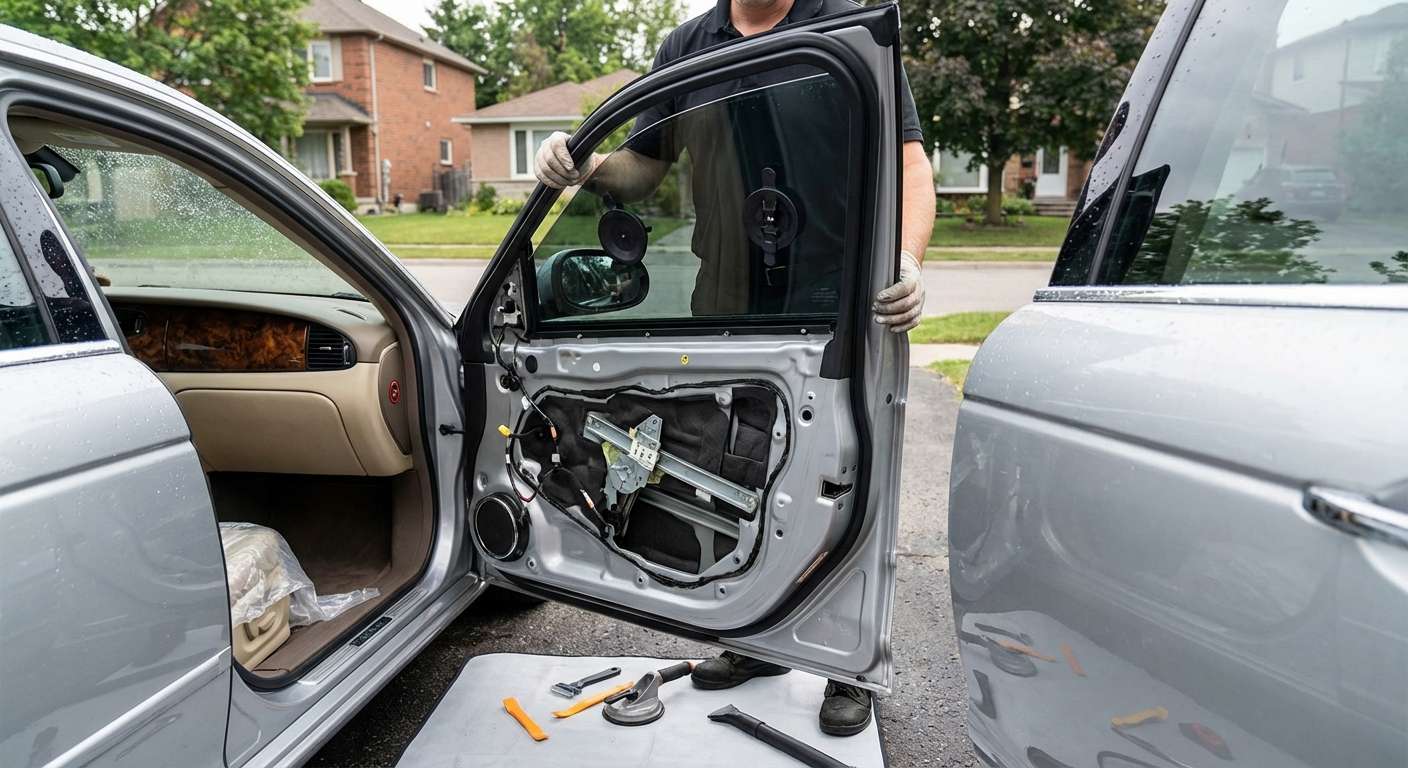

Replacing the drop glass involves interacting directly with Jaguar's cable-and-pulley lifting system. The bottom edge of the glass does not utilize molded retention brackets glued to the pane; instead, it slots into dual-rail regulator clamps secured by mechanical pinch bolts. When a side window drops abruptly inside the door shell, the culprit is often a snapped steel regulator cable or cracked plastic runner clips rather than a failure of the pane itself. If the glass has shattered, the clamp jaws must be thoroughly cleaned of remaining tempered safety glass crumbs to allow the replacement pane to seat flat and parallel across both lifting points.
In the rear door assembly, the movable drop pane operates adjacent to a stationary triangular quarter glass, separated by an isolated vertical division bar. Setting the replacement glass into the division bar channel requires precise alignment so the motor does not detect artificial resistance and trip the automatic anti-pinch reversal.
Aluminum Door Shell Fasteners and Limit Relearning
Servicing the window hardware requires removing the wood-veneered door card, audio driver, and the underlying vapor barrier. Because the X350 and updated X358 doors are formed from rivet-bonded aluminum, factory steel fasteners feature specialized coatings to prevent galvanic corrosion between dissimilar metals. Any servicing inside the cavity requires preserving these isolators to protect the structural integrity of the inner door skin.
Once new aftermarket glass is secured into the dual-rail clamps, the vehicle's electronic door control modules often lose their window travel memory, especially if the battery was isolated during hardware service. Restoring the automatic one-touch up and down function does not require diagnostic scanning tools. The system is relearned directly at the master switch by running the glass to its upper limit, holding the toggle until the relay clicks, and repeating the sequence at the bottom stop to register the resistance points.
