Restoring the Sleek Lines of the 2010-2016 Hyundai Genesis Coupe
The 2010-2016 Hyundai Genesis Coupe is a legendary rear-wheel-drive sports car that redefined modern Korean performance engineering. Its aggressive stance, sweeping roofline, and track-ready aesthetics are perfectly complemented by the sharp, angular vent glass (often referred to as the rear quarter glass) that tapers elegantly toward the trunk. When this critical piece of auto glass is compromised—whether due to a targeted break-in, unpredictable road debris, or a severe weather event—it doesn't just crack. Because it is manufactured from tempered glass, it shatters into thousands of tiny, hazardous shards. This instantly compromises your vehicle's security, aerodynamics, and stunning visual appeal.
As a senior Master Technician at AlexWindshield, I have spent years specializing in the intricate glass architecture of performance vehicles like the Genesis Coupe. Replacing the vent glass on this specific generation requires much more than just slapping a new piece of glass into a hole. It demands precision encapsulation matching, rigorous interior decontamination, and advanced urethane bonding techniques to ensure wind noise is eliminated and structural integrity is restored. We bring this high-level technical expertise directly to our clients across the Greater Toronto Area (GTA).
Why the Genesis Coupe Vent Glass Requires Specialist Attention
Unlike roll-up door windows that sit on mechanical regulators, the vent glass for the 2010-2016 Hyundai Genesis Coupe is directly bonded to the vehicle’s body using heavy-duty automotive polyurethane. It features a specific encapsulated rubber molding designed to sit flush with the exterior C-pillar and rear quarter panel trim. If this installation is off by even a few millimeters, Genesis owners will experience maddening wind whistle at highway speeds and potential water leaks that can destroy the interior upholstery.
Furthermore, because the Genesis Coupe has a heavily contoured interior with deep rear bucket seats and specialized side trim panels, a shattered vent glass means glass fragments will find their way into every hidden crevice. A standard glass repair shop might just glue in a new window, but at AlexWindshield, we perform a comprehensive restorative service.
Step-by-Step Vent Glass Replacement: The Master Technician’s Approach
Our meticulous vent glass replacement process ensures that your Genesis Coupe is returned to factory-original condition. Here is the exact A-to-Z technical procedure we follow for every 2010-2016 model we service in the GTA.
Step 1: Pre-Installation Inspection and Interior Protection
Before any tools are lifted, we conduct a thorough pre-inspection of the damage. We assess the exterior paintwork surrounding the window frame to ensure no scratches were caused by the impact that shattered the glass. Because we respect your vehicle, the very next step is intensive interior protection. We lay down heavy-duty protective blankets over the Genesis Coupe's rear leather or cloth seats, the center console, and the exterior quarter panels. This guarantees that no tools or residual glass shards damage your interior during the auto glass replacement process.
Step 2: Interior Trim Panel Removal and Deep Glass Vacuuming
When a vent glass shatters, it explodes inward. For this specific installation, we must carefully remove the interior C-pillar trim and loosen the rear side panels using specialized non-marring nylon pry tools to prevent damaging the Genesis Coupe's plastic clips. Once the interior body frame is exposed, the decontamination phase begins.
- Industrial Vacuuming: We use high-powered, localized vacuums to extract every single piece of broken tempered glass from the rear seat bolsters, the floorboards, and inside the actual body cavity of the quarter panel.
- Cavity Flushing: Leaving glass inside the vehicle frame will result in a highly irritating rattling sound every time you accelerate or corner. We ensure the interior frame is 100% free of glass debris.
Step 3: Extracting the Old Glass and Urethane Bead
With the interior safe and clean, we shift our focus to the exterior. The remnants of the old vent glass are still glued to the vehicle's pinch weld. Using a specialized cold knife and an advanced wire-cutting system, we meticulously slice through the original factory polyurethane adhesive. This wire system allows us to cut the glass out from the inside out, ensuring the Genesis Coupe's exterior paint and delicate clear coat remain completely untouched. We then carefully extract the remaining glass and encapsulated molding ring.
Step 4: Pinch Weld Preparation and Surface Cleaning
The foundation of a safe, leak-proof vent glass installation is the pinch weld (the metal frame where the glass sits). We use specialized scraping chisels to trim the old urethane down to a highly uniform base layer of about 1 to 2 millimeters. This process is called "trimming the bead." We never scrape down to bare metal unless absolutely necessary, as the existing factory urethane provides an excellent bonding surface. Following the trim, we use advanced, alcohol-based automotive surface cleaners to completely strip away dirt, road grime, and oils from the bonding area.
Step 5: Primer Application for Superior Adhesion
To guarantee the new vent glass remains securely attached to your Genesis Coupe even at high speeds, chemical preparation is mandatory. We apply a premium-grade, black glass primer to the ceramic frit band of the new vent glass, as well as to any microscopic scratches on the vehicle's pinch weld.
- Rust Prevention: Priming any exposed metal ensures that rust cannot form under the new glass.
- Chemical Cross-Linking: The primer acts as a chemical bridge, ensuring the polyurethane adhesive bonds permanently to both the vehicle frame and the new encapsulated glass.
Step 6: Precision Urethane Application and Glass Placement

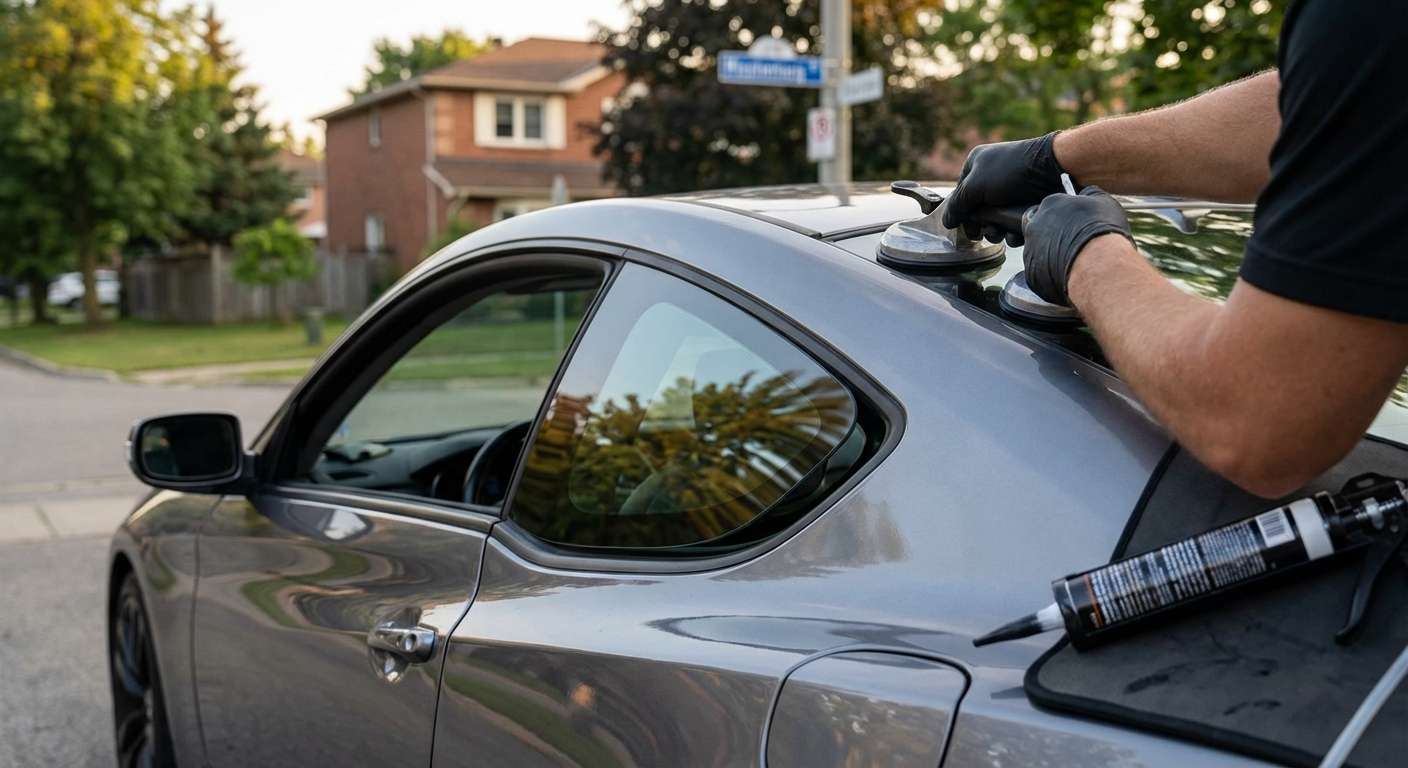

As a Master Technician, I only utilize top-tier, fast-curing automotive polyurethane. We apply a thick, triangular bead of adhesive directly onto the prepared pinch weld. The triangular shape is crucial—it allows the urethane to compress evenly without squeezing out into the interior or exterior edges. Carefully aligning the new 2010-2016 Hyundai Genesis Coupe vent glass with the vehicle's unique bodylines, we press the glass into place. We utilize specialized suction cups to ensure the glass is seated with the exact factory-specified depth, maintaining perfect flushness with the adjacent door glass and roofline.
Step 7: Reassembly and Final Quality Assurance
Once the glass is locked into place, we secure it with temporary retention tape to prevent any shifting while the urethane cures. We then move back inside the vehicle to reinstall the C-pillar trims and rear side panels, ensuring every clip snaps back into its rightful place perfectly. Finally, we clean the newly installed vent glass, alongside your door glass and windshield, with ammonia-free foaming glass cleaner. A final visual inspection confirms that the encapsulation molding is perfectly aligned, the interior is spotless, and the vehicle is ready for the road.
Premium Mobile Auto Glass Service Across the GTA
We understand that driving a Genesis Coupe with a shattered vent glass is not only a massive security risk but also a hazard due to the elements. That is why AlexWindshield operates a fully equipped mobile fleet designed to bring the auto glass shop directly to your location. We proudly serve the entire Greater Toronto Area (GTA).
Whether you are at your corporate office in Vaughan, parked in your residential driveway in Richmond Hill, or out shopping in Markham, our Master Technicians will arrive fully prepared. We bring the vacuums, the premium OEM-equivalent glass, the advanced adhesives, and the technical expertise right to your doorstep. You do not have to waste your day waiting in a dingy repair shop; we make the vent glass replacement process completely seamless and convenient for your busy lifestyle.
Choose AlexWindshield: Your GTA Auto Glass Experts
Your 2010-2016 Hyundai Genesis Coupe is a driver's car, and it deserves to be treated with the highest level of automotive respect. Do not compromise on safety, aesthetics, or interior acoustics by settling for sub-par glass replacements. At AlexWindshield, we pride ourselves on utilizing master-level techniques, utilizing only the finest materials, and delivering unparalleled customer service.
As the premier destination for mobile auto glass services in Vaughan, Richmond Hill, Markham, and the broader GTA, we stand by our craftsmanship. Every single vent glass, door glass, and windshield replacement we perform is backed by our comprehensive Lifetime Warranty. This warranty covers any highly unlikely instances of wind noise, water leaks, or manufacturer defects, giving you absolute peace of mind.
When the unexpected happens to your Genesis Coupe, trust the specialists who know your vehicle inside and out. Contact AlexWindshield today for a fast, precise, and professional mobile vent glass replacement.
