Rear Defroster Grid Breaks and Alarm Triggers on the P2 Platform
Broken horizontal defroster lines on the Volvo S60 cause far more headaches than simply leaving mist on your back window on cold mornings. In the Volvo community, owners across all engine trims—whether driving a base 2.4, a turbocharged 2.4T, 2.5T, T5, or the high-output S60 R—often trace mysterious tailgate and tamper alarms back to fractures in the printed rear glass elements. The vehicle's electronic monitoring systems run a continuous loop through portions of the back panel circuitry; when deep scratches or shattered heating traces sever that electrical path, the alarm module can register the change in resistance as an intrusion attempt.

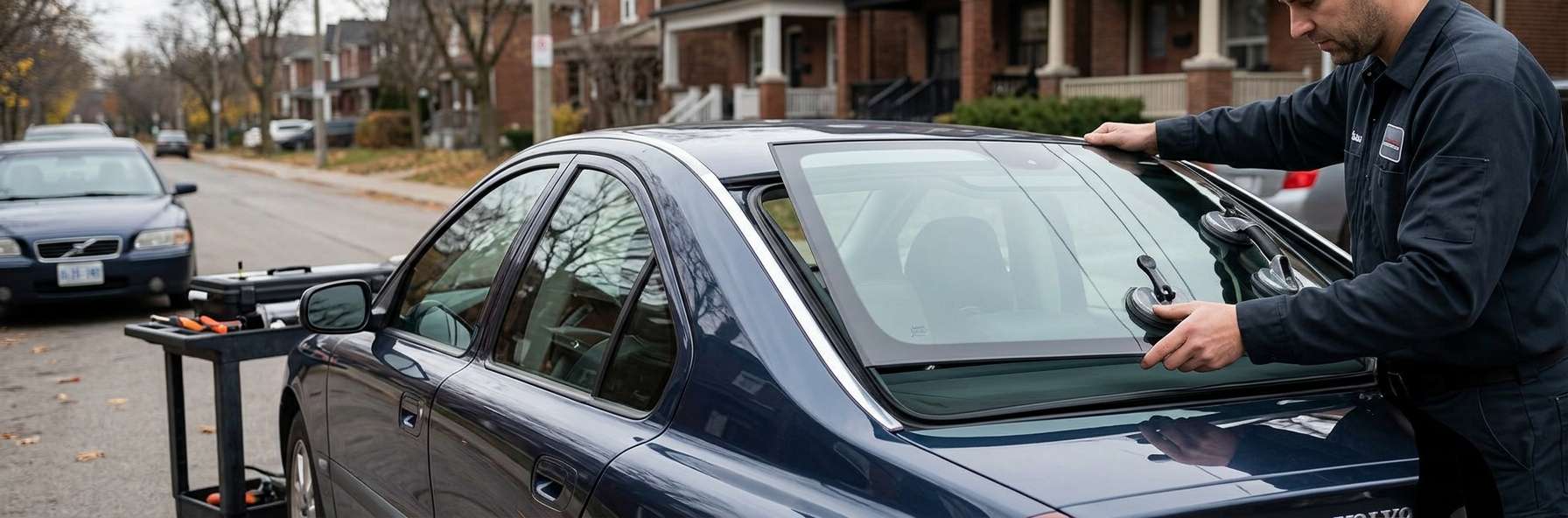

The stationary rear glass on these sedans also serves as the vehicle's primary radio receiver. Embedded directly into the upper pattern of the tempered safety glass alongside the heater traces is an internal AM/FM diversity antenna. If your glass is fractured, or if careless tint removal has scraped through the grid, you will usually lose clear radio reception alongside your defrosting capability. When a complete rear replacement is needed, I can generally be at your location within about an hour of your call to clean out the shattered tempered glass and set the new aftermarket panel.
Exterior Roof Drip Rails, C-Pillar Mouldings, and Surrounding Hardware
Replacing the back window on this sedan requires careful attention to the delicate exterior trims running along the roofline. Long painted drip-rail mouldings travel the entire length of the roof channels and continue directly down alongside the rear window reveals on both C-pillars. Over years of sun exposure, the thin rubber edge gaskets integrated into these long plastic strips turn brittle and peel away. Swapping the back panel requires easing these long mouldings aside without snapping their fragile retaining clips, ensuring they sit flush against the glass reveal once the new unit is bedded.
The cabin side of the glass requires just as much care. Unlike modern crossovers, the rear window on this sedan does not incorporate wiper linkages, washer nozzles, or rain sensors. Instead, the perimeter is closely framed by rigid interior C-pillar trim panels and a large horizontal parcel shelf:
- Center High-Mount Stop Lamp (CHMSL): The third brake light sits directly on the interior parcel shelf behind the bottom edge of the glass, fitting into a dedicated lower cutout that must be kept clear of any adhesive push-out.
- Interior C-Pillar Trim: The plastic sail panels on each side conceal the soldered electrical spade connectors feeding both the horizontal defroster grid and the printed diversity antenna amplifiers.
- Factory Tint Specification: Every replacement back window matches the original factory solar-control green tint profile, maintaining proper heat rejection without altering cabin aesthetics.
Can a dead defroster grid be fixed without replacing the back glass?
If you only have one or two hairline scratches interrupting specific defroster lines, a conductive silver paint repair kit can sometimes bridge the gap and restore current. However, if the grid failure is widespread, if the soldered side electrical tabs have snapped off the glass surface, or if the internal diversity antenna circuit is broken, replacing the entire window panel is the only lasting solution. It is also worth checking the RMA3 relay inside the cargo area Rear Electrical Module (REM), as a burnt relay often mimics a damaged rear grid.
Does the rear window replacement include the radio antenna?
Yes. The AM/FM diversity antenna is not a separate wire harness or external mast; it is physically printed onto the interior surface of the aftermarket tempered glass during manufacturing. Once the two electrical terminals beneath your C-pillar interior trims are reconnected to the new window, your radio reception will work exactly as it did from the factory.
