Forum Confusion Over Quarter Window Grid Lines
Lexus LX 570 owners frequently post photos on IH8MUD and ClubLexus asking why their driver-side and passenger-side rear cargo glass feature totally different line patterns, or why lines on one side never clear frost. The answer comes down to what Toyota engineered into the glass: one side typically carries the primary AM/FM diversity antenna and telemetry reception elements, while the opposite window or dedicated sections integrate the defroster elements. Because the antenna conductors do not generate heat, owners often mistake them for broken heating elements.
Unlike the motorized vent glass used on the earlier LX 470, the URJ201 platform moved to fully fixed, direct-glazed quarter windows bonded permanently into the D-pillar body structure. These units feature heavy factory privacy tinting to protect the cargo bay and hide the antenna amplifiers mounted behind the interior pillars.
Interior Stripping and D-Pillar Wiring Connections

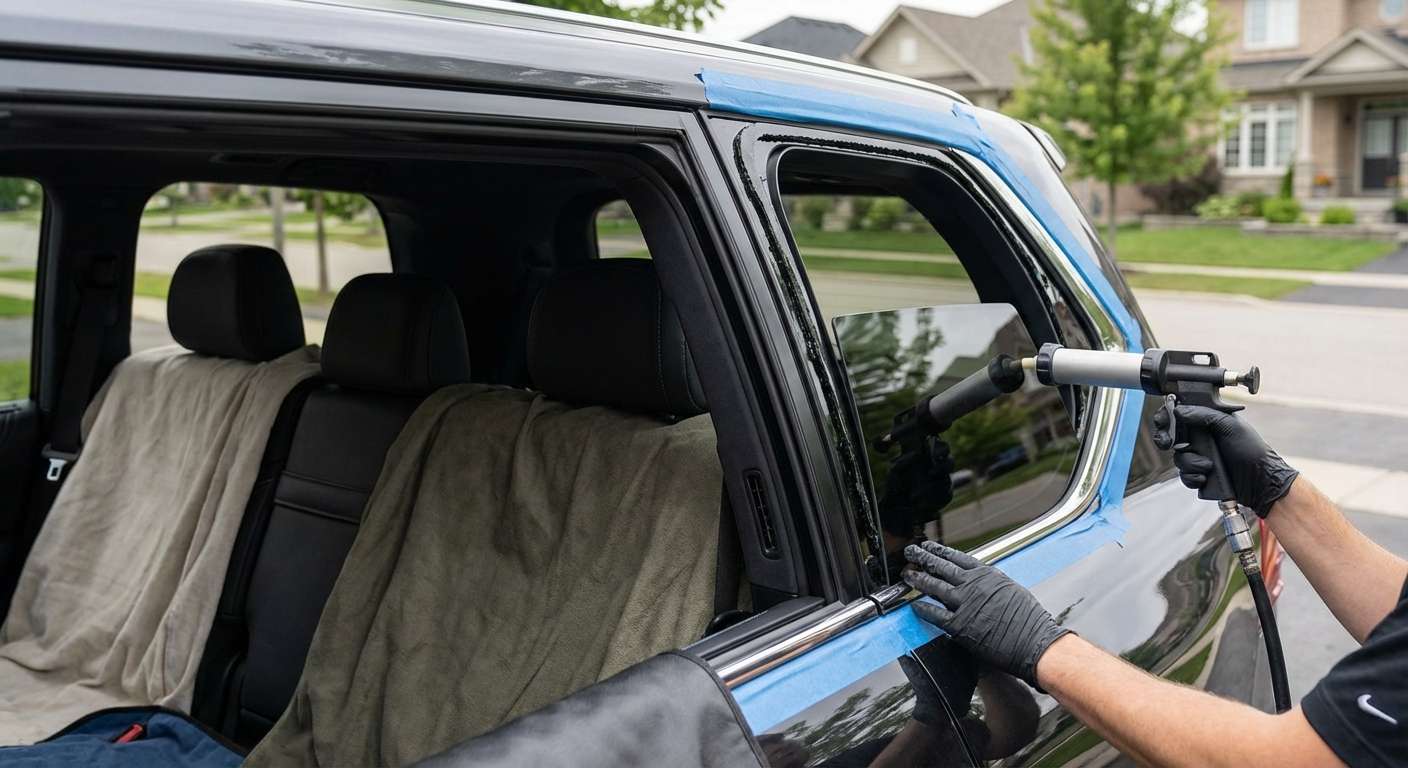

Replacing this window requires far more interior disassembly than a typical SUV cargo pane. Before reaching the bond line, the third-row area must be opened up from the inside. I have to remove the upper seatbelt anchor assemblies using a 14 mm socket, detach the rear grab handles, and pull the extensive upper and lower D-pillar trim sections away from the sheet metal.
Hidden right behind that interior trim are delicate wiring pigtails with blade terminals connecting directly to the antenna and defroster grids. If a technician pulls on the glass before disconnecting those harness terminals from inside the cargo wall, the body-side wiring harness tears out instantly.
When sourcing glass for these trucks, I supply aftermarket panels produced by proven manufacturers such as Pilkington, PGW, FYG, and XYG to ensure the integrated antenna connectors and factory-depth privacy glass align properly with the existing body harness.
| Component / Feature | URJ201 Lexus LX 570 Specifics |
|---|---|
| Glass Operation | Stationary direct-glazed panel (no vent motors) |
| Printed Grid Functions | Diversity radio antenna, telemetry, optional defroster |
| Interior Fasteners | 14 mm upper cargo seatbelt shoulder anchors |
| Leading Edge Moulding (LH) | OEM 75641-60021 (exterior vertical trim) |
| Leading Edge Moulding (RH) | OEM 75642-60021 (exterior vertical trim) |
Exterior Trim Strip Detachment Issues
Another regular complaint among LX 570 drivers involves the vertical trim moulding installed along the leading edge of the quarter glass. Lexus secured these decorative trim pieces—part numbers 75641-60021 on the left side and 75642-60021 on the right—using factory plastic retainer clips and thin double-sided foam tape against the glass border.
High-pressure automatic car washes commonly catch the edges of these mouldings, peeling the degraded foam tape away from the glass surface. Because the glass utilizes encapsulated perimeter reveal trim bonded straight from the factory, reattaching or replacing loose exterior trim strips demands complete removal of residual factory adhesive without damaging the surrounding rubber encapsulation.
