Why Evoque Windshields Fail and Leak
The compact footprint of this luxury crossover puts substantial torsional stress on the windshield perimeter, frequently turning minor gravel chips into full horizontal cracks starting right at the lower ceramic frit line. Beyond typical impact breakage, the first-generation L538 platform is notorious for factory urethane bonding failures. Land Rover issued Technical Bulletin N221NAS (Service Action N221) to address severe windshield seal degradation that allowed rainwater to bypass the glass edge. When water slips past the original bead, it runs straight down the A-pillars into the cabin floorboards, soaking under-carpet padding and threatening the sensitive body control module tucked away beneath the dashboard.

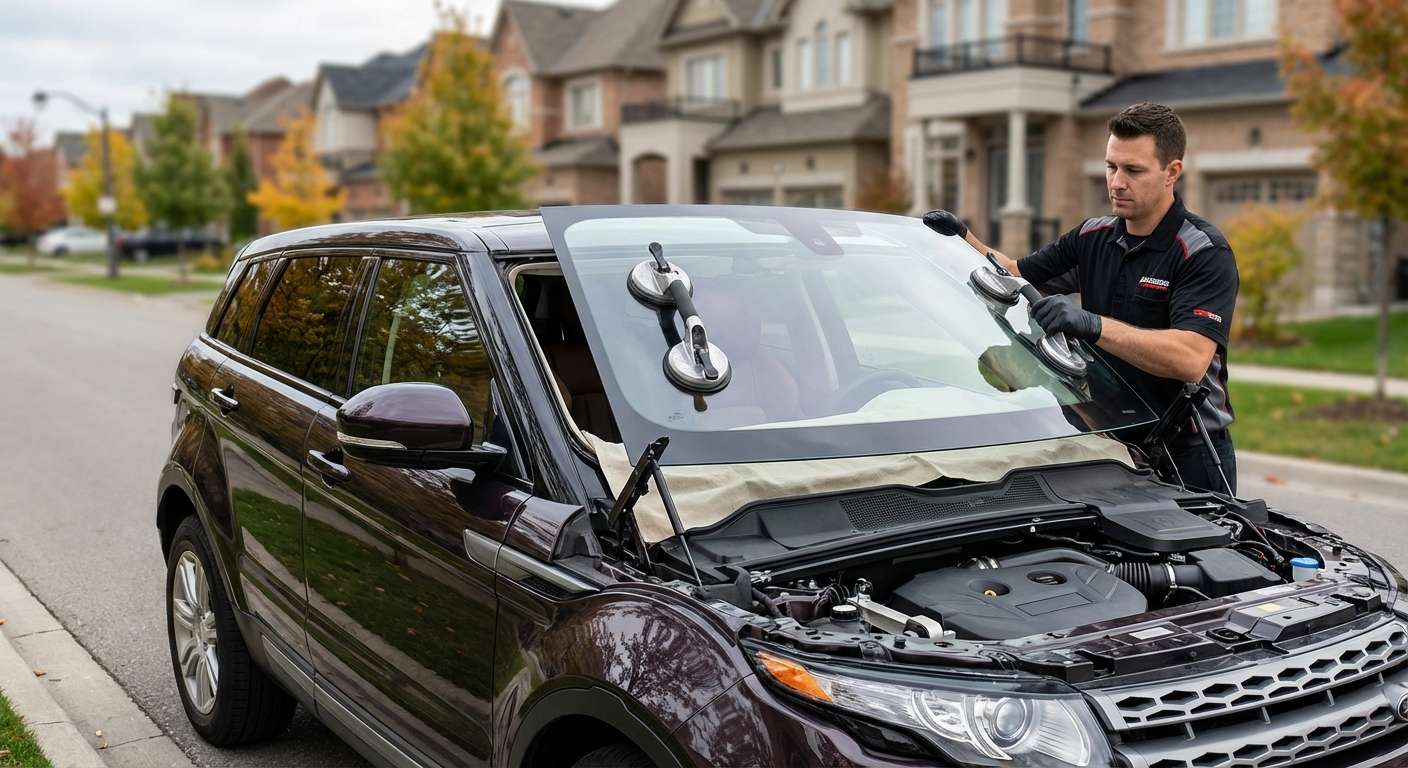

Replacing broken or leaking glass resolves these water ingress issues at the root, provided the exterior trim pieces are handled correctly. The gloss-black exterior A-pillar finisher mouldings flanking the windscreen rely on delicate plastic fasteners that snap under the slightest leverage. If an installer reuses damaged clips or misaligns the trim during reassembly, wind buffeting and highway whistling are inevitable. I handle every replacement personally on a strictly mobile basis, coming directly to your driveway or office parking spot anywhere across Toronto and the surrounding GTA.
Navigating Glass Variants and Interlayer Options
Selecting the correct replacement glass for the 2012–2019 model run requires matching several hidden technologies laminated between the glass plies. NAGS inventories categorize these windshields primarily under the FW03533 and FW03535 series, corresponding to body profiles across the standard 5-door SUV, the 3-door Coupe, and the later 2-door Convertible. Swapping the wrong unit will disable features you rely on daily.
| Glass Feature | OEM Reference Numbers | Technical Function on L538 |
|---|---|---|
| Quickclear Heated Grid | LR048385, LR069707 | Micro-tungsten filament array embedded inside the PVB to defrost ice rapidly without dash blower heat. |
| Infrared Solar Attenuating | LR184624 (replaces LR026233, LR041833) | Acoustic solar-reflective metallic interlayer that repels cabin heat load and softens road noise. |
| Head-Up Display (HUD) Wedge | LR069706, LR069707 | Tapered laminated core designed specifically to prevent double-imaging and ghosting of projected instrument data. |
| Standard Rain/Humidity Bracket | LR048378, LR048383 | Direct-bonded optical bracket housing the combined rain, ambient twilight, and cabin condensation sensor. |
If your vehicle features the factory Head-Up Display introduced mid-cycle, standard flat-laminated glass will cause blurry, duplicated speed readouts on your windshield. Similarly, the optical gel pad behind the rain and humidity sensor cluster must sit perfectly flat against the glass bracket without trapped air pockets, or your automatic wipers will wipe erratically across dry glass.
Post-Replacement Inspection Checklist
Once your new windshield is fitted and the adhesive cures, take a few minutes to inspect vehicle-specific components before driving:
- Gloss A-Pillar Finishers: Verify that both black exterior pillar trims sit flush with the steel roofline without loose edges, lifted corners, or play when pressed gently.
- Cowl and Plenum Seating: Ensure the lower plastic cowl grille snaps cleanly against the bottom frit of the glass, keeping engine wash and debris out of the cabin intake filter.
- Wiper Arm Rest Positions: Confirm the dual articulated wiper arms sit parallel to the lower black ceramic frit line and do not slap the outer A-pillar moulding on full sweep.
- Heated Windshield Grid: Switch on the front defroster button to verify both left and right electrical heating elements clear frost evenly across the entire surface.
- Rain Sensor Function: Mist the glass over the rearview mirror mount with clean water to confirm the automated wiper cycle triggers instantly without delay.
- VIN Window Alignment: Check the lower driver-side corner to confirm your 17-digit chassis number is fully visible through the cut-out in the ceramic border.
