Inspecting EV9 Sunroof Glass Panels Before and After Service
Replacing the overhead glass on an EV9 demands strict inspection of the specific panel design before it ever touches the roof framing. Base Light RWD models arrive with a blank painted roof, while Light Long Range RWD trims use a single tilt-and-slide unit. The Wind AWD, Land AWD, and GT-Line models step up to a dual-pane setup combining a sliding front panel with a separate, stationary rear panoramic pane. Because factory part cataloging splits the system between front moving glass (OEM 81630-DO000) and the primary support cassette assembly (OEM 81610-DO000), confirming the physical dimensions, fastener tapings, and integrated solar coatings prior to fitment is essential.
| Trim Level | Roof Layout | Movable Front Panel | Fixed Rear Panoramic |
|---|---|---|---|
| Light RWD | Solid metal | No | No |
| Light Long Range RWD | Single power sunroof | Yes (81630-DO000) | No |
| Wind, Land, GT-Line AWD | Dual-panel overhead | Yes (81630-DO000) | Yes |
Prior to mounting, I inspect the dark solar tint layer and factory ultraviolet reduction treatment embedded in the glass. The dark factory tint on these large horizontal expanses is critical for managing cabin temperatures over the three-row cabin. When sourcing these panels, I supply high-grade aftermarket glass from specialist manufacturers like PGW, Pilkington, FYG, and XYG to match the light transmittance and acoustic dampening engineered into the original build.
I also inspect the perimeter rubber extrusion seal molded around the moving front glass panel. The vulcanized rubber profile must sit completely flat without twisting, warping, or thin spots along the rear corners. If the seal edge is crushed out of the box, high-pressure car washes will push water past the rubber lip and overwhelm the internal channel system beneath the high-strength steel roof cross-members spanning the B-pillars.
Interior Clearances and Track Mechanics

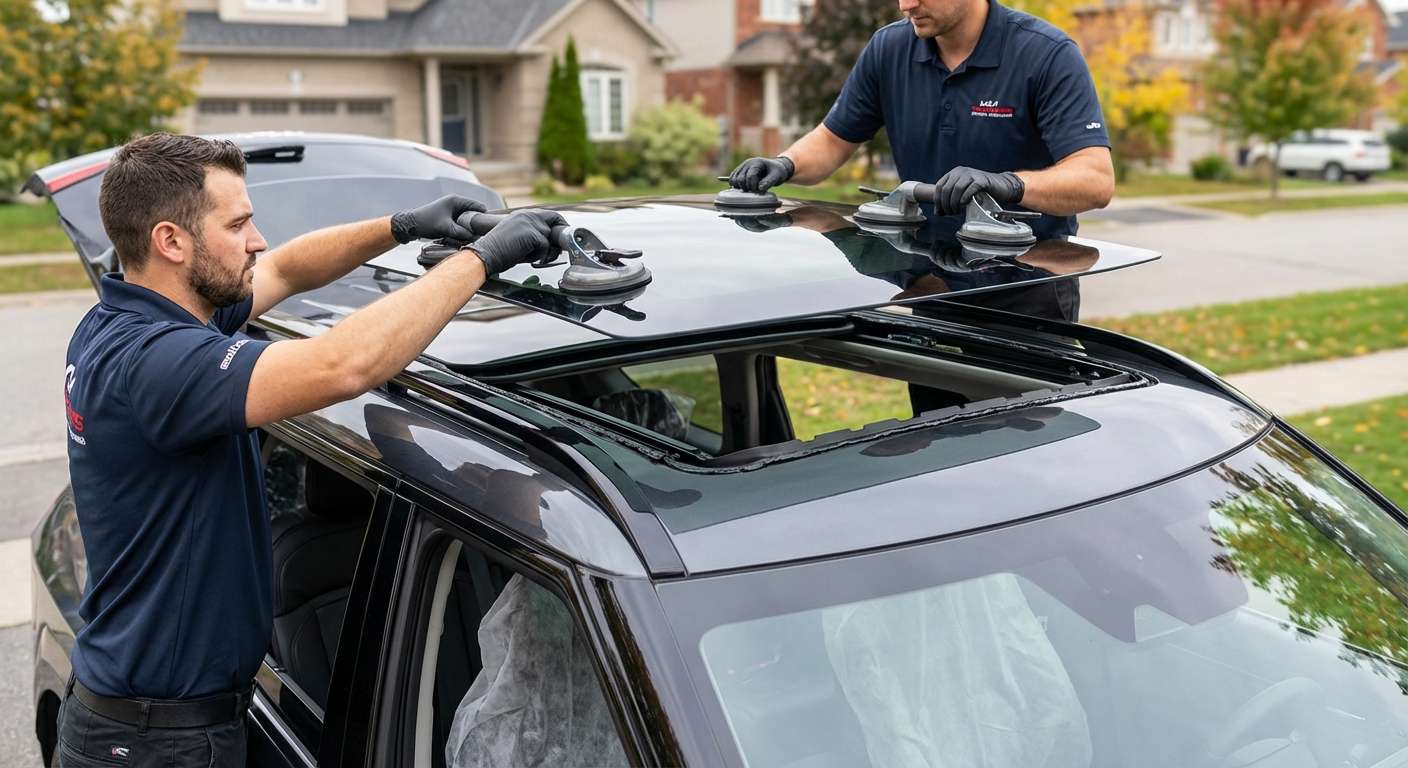

Once the replacement panel is aligned to the roof cutout, the physical tracking mechanisms beneath the one-piece headliner require careful checks. Access to the mounting points means working in close proximity to the ceiling-mounted rear HVAC ducting, front overhead consoles, and side-curtain airbag assemblies that frame the outer roof structure. If a panel was swapped due to the spontaneous stress cracks documented on rear panoramic glass sections, I thoroughly inspect the metal cassette tracks for microscopic debris before cycling any moving components.
The post-service check requires a methodical review of the tracking and fabric systems:
- Panel Height Flushness: The front glass leading edge should sit slightly below or level with the steel roof stamping, while the trailing edge should sit flush to slightly higher to deflect airflow over the seam cleanly.
- Outer Rail Clearances: AWD trims feature raised structural roof rails running down the channels; check that the side perimeter weatherstrip maintains equal clearance without rubbing the rail footings.
- Power Sunshade Travel: Both front and rear sections feature individual motorized fabric shades. Check that the fabric glides smoothly across the lower track without pinching, jamming, or throwing electronic synchronization errors.
- Tilt and Slide Limits: Run the front panel through its full tilt sequence and rearward travel to ensure the motor limit switches recognize full-close and full-open stop positions without binding against the cassette frame.
If the rear roller shade locks or refuses to respond after the battery is reconnected, reseating the dedicated sunroof fuses often resets the internal control modules and restores one-touch functionality without having to drop the motor drives.
