Identifying the Roof Glass Panels on Your EV6
Determining which piece of glass needs replacement on the Kia EV6 comes down to whether the damage is on the functional sunroof or the narrow section sitting directly ahead of it. This vehicle utilizes a split roof setup on equipped models. The frontmost portion, situated between the top edge of the windshield header and the movable sunroof, is a stationary piece of factory-tinted, solar-control tempered safety glass under OEM reference 81620-CV000. Immediately behind it sits the powered tilt-and-slide sunroof glass under OEM reference 81630-CV000. If you drive a Light trim, your roof is solid painted steel, but stepping up to the GT-Line, the high-output GT, or a Wind outfitted with the optional Technology Package means your car features this two-part glass configuration.
The front stationary glass panel is bonded directly to the steel header frame right above the windshield pinchweld. It contains no wiring, defroster grids, or aerial leads, as the rain sensor and forward-facing ADAS cameras mount directly to the windshield glass rather than the roof. Because it is fixed rigidly over the front crossmember, this narrow strip absorbs significant body flex and road debris impact, which explains why several EV6 drivers encounter stress cracks or sudden shattering here while the sliding panel behind it remains untouched.
Mechanical Differences Between the Fixed Strip and the Sliding Unit
When replacing these sections, the hardware requirements differ completely depending on which panel failed. The movable 81630-CV000 panel sits inside a mechanical track cassette nestled above the interior headliner. It attaches mechanically with Torx fasteners hidden beneath flexible rubber accordion bellows on each side, surrounded by an encapsulated peripheral rubber weatherstrip that seals against wind noise and water intrusion. If the sliding panel or its peripheral seal is damaged, the glass unbolts from the track without disturbing the headliner. However, if the track frame, drive cables, or internal power roller sunshade are twisted or rattling—a common grievance on rough roads—the entire interior headliner must be dropped to access the cassette housing.

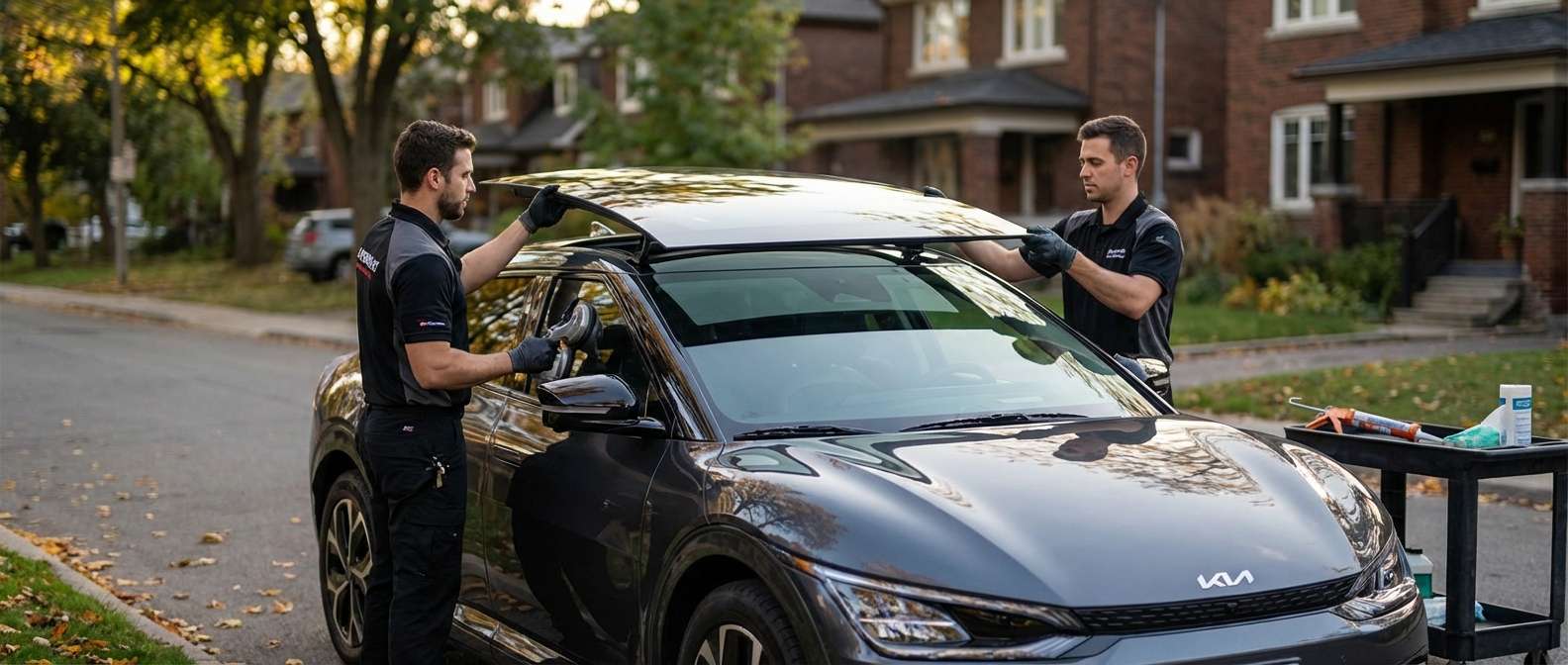

When I replace the bonded front fixed panel or install replacement aftermarket sunroof glass on your EV6, my workmanship is backed for as long as you own the vehicle, alongside a one-year warranty on the replacement glass itself. Both glass sections use solar-absorbing, heavy factory tinting, so aftermarket units must match the dark visual transition between the windshield header and the rest of the dark roof frame.
| Roof Glass Section | OEM Reference | Mounting Type | Integrated Components |
|---|---|---|---|
| Front Fixed Roof Panel | 81620-CV000 | Urethane-bonded to roof header | None (Solar-control tempered) |
| Tilt/Slide Sunroof Panel | 81630-CV000 | Torx fasteners to track cassette | Encapsulated perimeter seal |
Post-Replacement Inspection Checklist for EV6 Owners
Once the work is complete, verify that the mechanical features and body interfaces match the original factory alignment before driving away:
- Confirm that the front fixed glass panel sits completely flush with both the upper edge of the windshield frame and the leading edge of the sunroof opening.
- Cycle the movable sunroof through its tilt, full slide open, and slide closed positions using the overhead switch to ensure the one-touch auto-reverse function operates smoothly without hesitation.
- Examine the flexible side bellows inside the cabin to verify they are seated correctly in their retaining grooves and do not pinch or bunch up when the glass moves.
- Check the perimeter rubber seal around the sliding glass to ensure it is seated evenly without gaps, twists, or puckering against the roof sheet metal.
- Operate the motorized interior roller sunshade from front to back to verify it glides along its side channels without binding or catching on the headliner opening.
