Why Break-Ins and Peeling Trim Target the C-Pillar Window
Thieves frequently smash the small rear side window on the Typ 8Y sedan because they assume it will not trigger the interior motion sensors, leaving owners surprised to find that this small pane is far more complex than the drop glass in the rear doors. Rather than resting inside a movable window frame, this stationary tempered glass is bonded directly into the structural C-pillar sheet metal right behind the passenger door. When it shatters, you are not just replacing a small pane of safety glass; you are replacing an entire encapsulated unit that integrates alignment pins and an exterior perimeter moulding.
This pre-bonded perimeter moulding is also the source of frequent complaints on owner forums among drivers with the Black Optic package. Car detailers and owners report that aggressive touchless car wash detergents or harsh spray waxes quickly cause milky hazing, chemical staining, and peeling along the high-gloss black finish. Because Audi engineered the exterior trim to be permanently fused to the tempered glass at the factory, you cannot simply pry off the faded plastic strip and snap a fresh piece on. Resolving unsightly exterior trim damage requires extracting and replacing the complete quarter glass assembly.
Matching Typ 8Y Mouldings: Black Optic vs. Bright Aluminum
When swapping this window on an A3, S3, or RS3 sedan, sourcing the correct exterior finish is critical to ensure the car's body lines match from the rear door run channel up through the roof rail trim. The sedan body style uses distinct assemblies based on whether the vehicle came optioned with standard bright trim or the shadowline package:
- High-Gloss Black Trim (Black Optic): Left side corresponds to base dealer reference 8Y5-845-297-N-NVB, while the right side corresponds to 8Y5-845-298-N-NVB. These units feature the blacked-out perimeter moulding engineered flush to the outer edge.
- Bright / Chrome Trim: Left side corresponds to 8Y5-845-297-M-NVB, with the right side under 8Y5-845-298-M-NVB. These share superseded factory variants including 8Y5845297D, 8Y5845297F, 8Y5845297K, and 8Y5845297L (along with the matching right-hand '298' revisions).
- Sportback Hatchback Shells: While less common in North America, five-door Sportback models rely on distinct body glass under part series 8Y4-845-297 and 8Y4-845-298, which have different exterior dimensions and contouring along the hatch pillar.

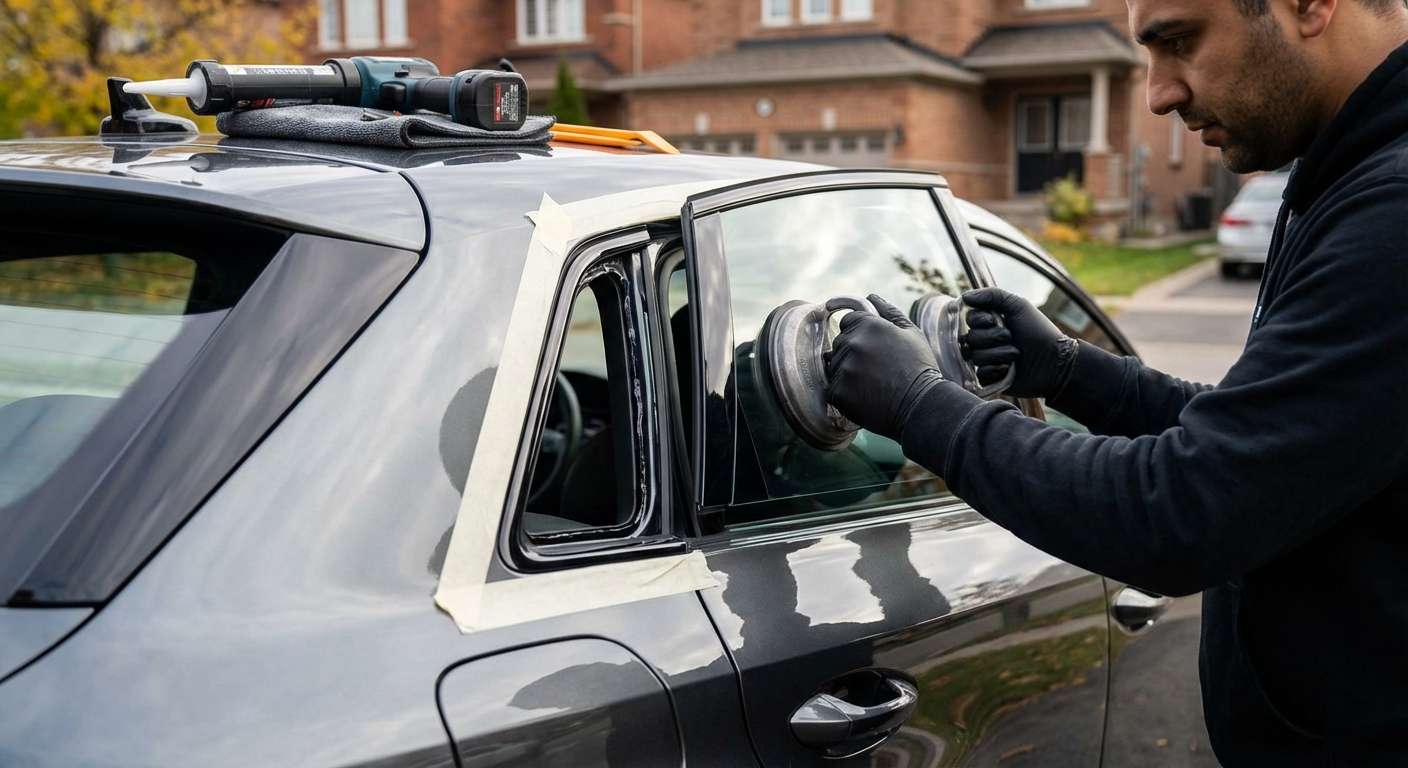

I operate entirely on a mobile basis, traveling directly to your driveway or office parking spot across Toronto and the GTA to replace broken quarter glass on-site. Because interior quarter trim panels and adjoining C-pillar liners sit tightly against the glass boundary, handling the swap where the car is parked keeps shattered tempered fragments from migrating deeper into your rear cabin insulation during transit.
Glass Composition and Surrounding Body Architecture
The quarter window on the Typ 8Y is manufactured from solid tempered safety glass carrying a DOT AS2 rating, finished in a standard solar-control green hue. Unlike the windshield, this stationary glass does not contain forward camera brackets, moisture sensors, or heated wiper elements. It also omits the defrost heating grid lines seen on the main rear backlite window.
Instead, the unit functions as a flush bridge between the rear door window seal run channels and the C-pillar sheet metal. Built into the underside of the encapsulated surround are factory-located alignment clips. These pins position the glass at the exact depth needed so the exterior beltline moulding aligns seamlessly with the adjacent door trim, preventing excess wind turbulence along the rear quarter panel at highway speeds.
Can the gloss black exterior trim be replaced without changing the glass?
No. The outer trim moulding is permanently bonded to the glass encapsulation during manufacturing. If the black finish is stained by chemicals or starts delaminating, the entire quarter window must be cut out and replaced as a single unit.
Does the quarter glass contain defroster lines?
No. The rear quarter window does not contain electric defrost wiring. Any electrical elements found in the rear cabin glass are confined to the main rear window backlite.
Are the quarter windows the same on the A3 sedan and Sportback?
No. The sedan (Typ 8Y5) uses a distinct triangular glass profile that mates with the C-pillar trunk notch, whereas the Sportback (Typ 8Y4) uses a differently shaped glass pane designed to meet the rear hatch pillar.
