Shattered Moonroof Glass and Water Ingress on Fourth-Gen TL Sedans
Road debris kicked up on the highway frequently strikes the forward edge of the roof, causing the dark-tinted tempered glass on the Acura TL to instantly spiderweb and cave into the cabin sunshade. Because the factory assembly uses a single-pane safety glass bonded directly to an encapsulated outer seal, any stone impact that compromises the surface tension leads to total fragmentation rather than a repairable chip. Aside from road hazards, long-term degradation of the perimeter moulding allows excessive stormwater to bypass the seal and overwhelm the internal tray, soaking the front footwells or saturating the headliner around the overhead map light console when the A-pillar drain tubes back up.
Every fourth-generation TL—spanning the front-wheel-drive Base and Technology trims up to the 3.7-liter SH-AWD Advance Package—shares the exact same power tilt-and-slide glass panel design under factory reference 70200-TK4-A02. Unlike windshields on this platform, the sunroof glass does not house defroster grids, GPS antennas, or rain sensors; those components are isolated to the windshield glass and rear roof sheet metal. Instead, the moonroof panel functions solely as a moving mechanical seal that interacts with a spring-loaded mesh wind deflector and an internal drain channel.
Mechanical Alignment, TSB 14-027, and Track Friction

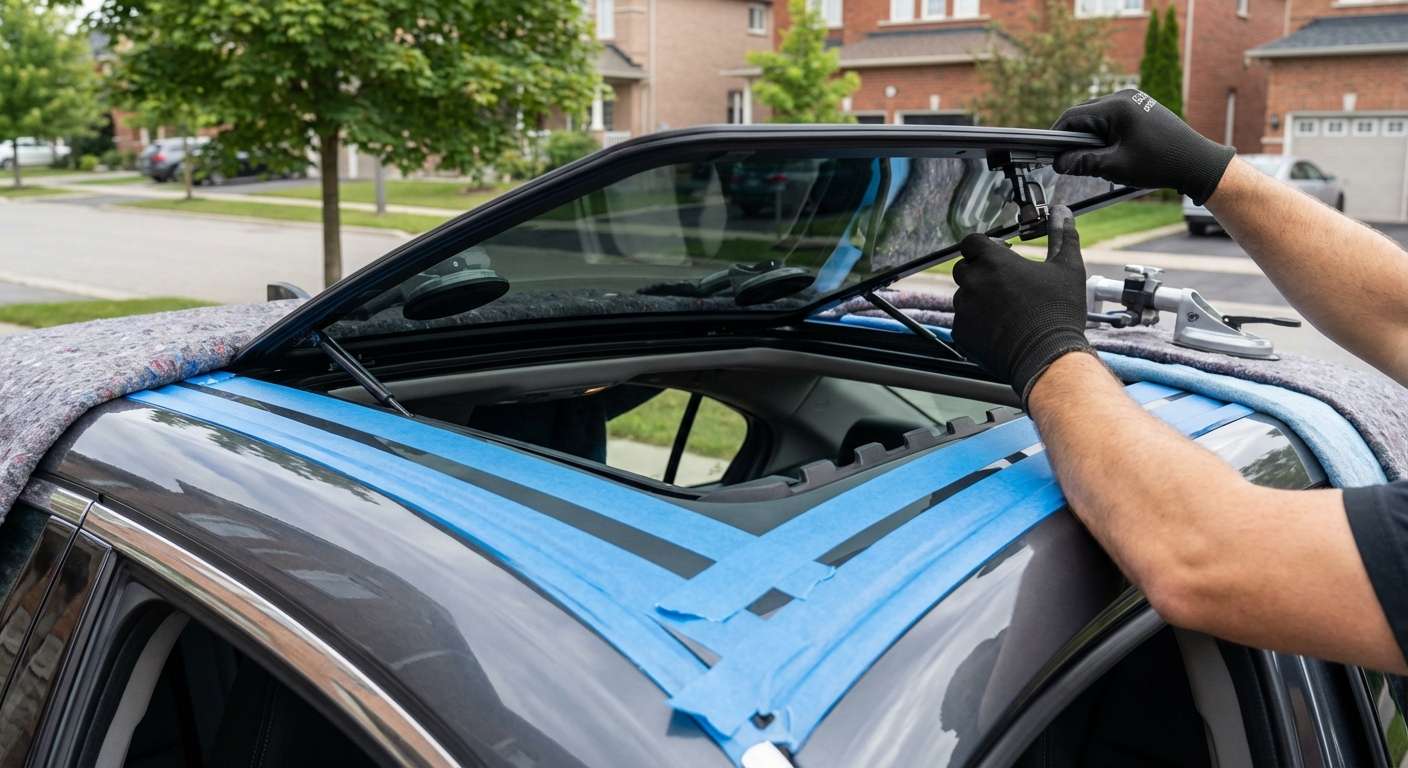

Replacing the glass on the UA8 and UA9 body styles does not involve dropping the interior headliner. The glass panel fastens directly to the tilt mechanisms using four Torx T25 fasteners—two flanking each side hidden behind plastic link covers. Precise height alignment during mounting is critical on this car; if the leading glass edge sits too high, severe highway wind buffeting occurs, whereas a trailing edge set below the roofline will catch standing water and whistle at speed.
Many TL owners struggle with moonroofs that suddenly reverse when trying to close, a condition outlined in Acura technical service bulletin TSB 14-027. The anti-pinch mechanism detects drag against the pop-up front wind deflector, triggered by worn or high-friction drain channel rods. I provide a one-year warranty on the replacement glass itself alongside lifetime protection on my workmanship, making sure the panel sits dead-flush to the roof stamping so the carrier slides freely without tripping safety reverse cycles or binding against the tracks.
Owner Handover Inspection for the Acura TL Moonroof
After a new moonroof panel is installed, verify these vehicle-specific points before putting the car back into daily use:
- Outer Moulding Flushness: The front edge of the tempered glass should sit approximately 1 to 1.5 mm below the roof sheet metal, while the rear edge sits flush or up to 1 mm above it to channel airflow cleanly over the opening.
- Auto-Reverse and Anti-Pinch Operation: Run the one-touch auto-close function from the overhead switch; the glass must fully seat and compress the seal without bouncing back off the forward deflector bar.
- Sunshade Travel: Slide the manual interior sunshade forward and back along its separate lower guides to ensure no broken glass shards are lodged in the velvet runner tracks.
- Corner Drain Routing: The front drain troughs visible when the panel is retracted must allow water to flow freely down into the A-pillar runoffs rather than pooling in the cassette tray.
- Wind Deflector Action: The spring-loaded mesh air deflector at the leading edge should deploy smoothly as the glass glides back and fold completely flat into its channel as the panel shuts.
