Why ILX Windshields Crack Along the Roofline and Cowl
Most broken windshields I replace on this sedan show cracks spreading from two very specific stress zones: the extreme bottom wiper rest area and the leading roof seam. Because the car shares underbody architecture with the 9th-gen Civic, the low-slung nose and steep A-pillars deflect road gravel directly into the bottom band of the glass, hiding early star breaks beneath the black ceramic frit. A stone hit resting near the lower glass dam (part 73126-SYY-000) or tucked below the two-piece plastic cowl grille assembly often stays unnoticed until the defroster thermal-shocks it into a horizontal fissure.
The top edge presents another vulnerability tied directly to the vehicle's paint. On factory finishes like Bellanova White Pearl and Taffeta White, clear-coat peeling and paint delamination frequently develop directly along the metal roof edge meeting the flexible upper reveal molding (part 73150-TX6-A01). Airborne debris striking that unbuffered junction chips both the thin paint and the exposed glass perimeter, sending diagonal stress cracks downward across the acoustic PVB interlayer.
Mirror Mounts, AcuraWatch, and Year-by-Year Glass Hardware
Every aftermarket windshield I fit for this model features factory-matching green solar glass and an internal acoustic layer to control cabin drone, but the inner bracket hardware splits sharply between years and trim levels.
| Model Years & Trims | NAGS Glass Code | Hardware Features & Mount Type |
|---|---|---|
| 2013–2015 Base 2.0L / 2.4L | FW03622 | Standard manual flip rear-view mirror bracket; no forward sensors. |
| 2013–2015 Premium / Technology | FW03624 | Electrochromic auto-dimming rear-view mirror mount with wire harness path. |
| 2016–2022 Base / Special Edition | FW04184 | Standard manual mirror button; updated post-refresh lower perimeter shape. |
| 2016–2022 Package | FW04185 | Electrochromic auto-dimming mirror base without driver-assist camera housing. |
| 2016–2022 With AcuraWatch | FW04186 / FW04187 | Integrated forward monocular camera bracket (LKAS/CMBS) plus auto-dimming mount. |
Matching the bracket style is critical. The early 2013–2015 cars used dealer reference numbers 73111-TX6-A01 for standard mirrors and 73111-TX6-A11 for auto-dimming units. When the 2016 refresh introduced the AcuraWatch active safety suite (OEM glass 73111-TV9-A31), the glass gained a large upper trapezoid bracket. When you schedule service for your sedan, I am generally on-site setting up the replacement roughly an hour after the call comes through. On those camera-equipped 2016+ models, the aftermarket camera bracket must accept the factory camera clip without forcing or canting the lens, which would trigger an immediate U3000-49 system fault on the instrument cluster.
Post-Replacement Inspection Checklist

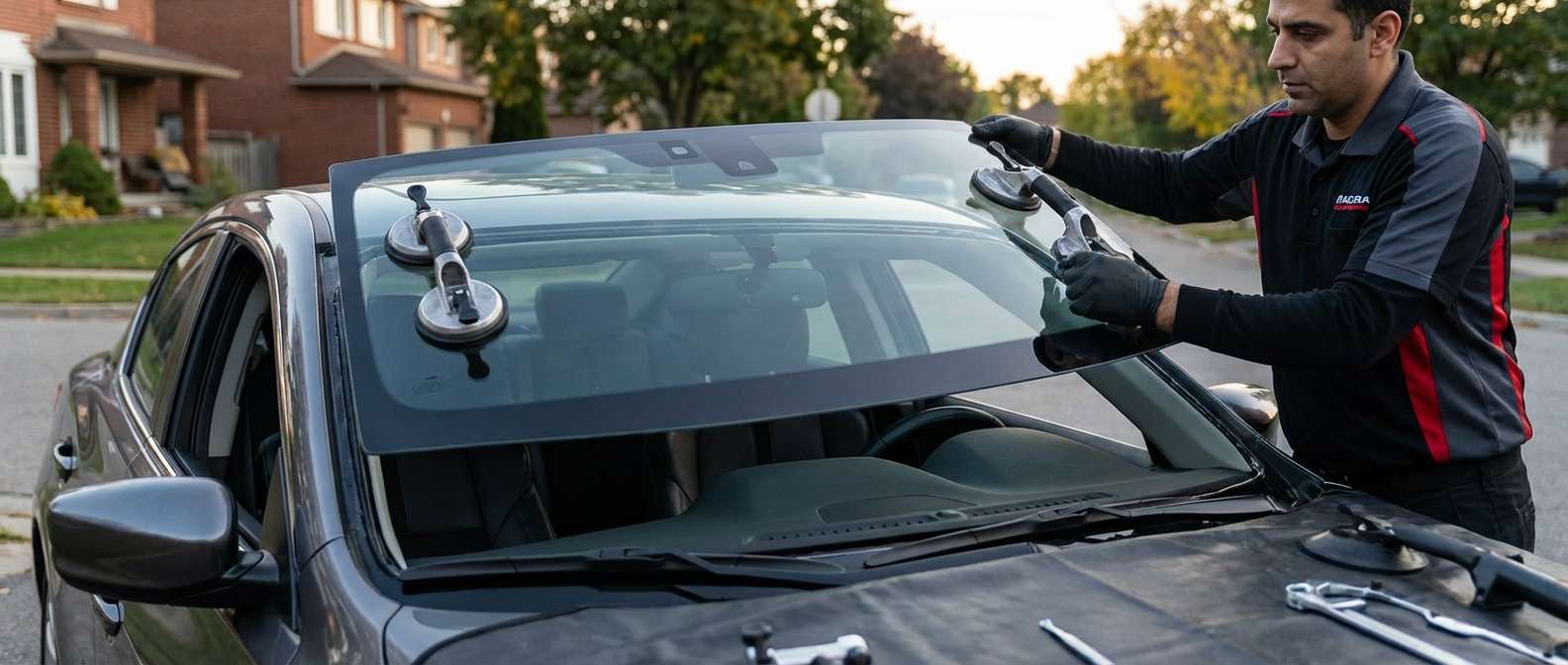

Once the replacement glass is seated, check the car's exterior surrounds and interior hardware before heading out:
- Inspect the upper reveal molding (73150-TX6-A01) to verify it lays perfectly flat across the roof edge with no lifted corners near the moonroof opening.
- Check both exterior A-pillar side rubber dams to ensure the hidden retention clips (91568-TA0-A00) are fully engaged and flush against the metal pillar.
- Examine the base of the windshield to ensure the two-piece plastic cowl grille locks cleanly into the lower glass dam without bowing upward near the wiper pivots.
- Ensure the rearview mirror—whether the wedge-mount manual style or the powered auto-dimming unit—locks tight onto the pre-bonded glass bracket without vertical play.
- On 2016–2022 models with AcuraWatch, ensure the plastic interior shroud over the monocular camera snapped completely shut around the mirror stem without stressing the glass frit.
